MONTAGE ZUBEHÖR



Set Balkon

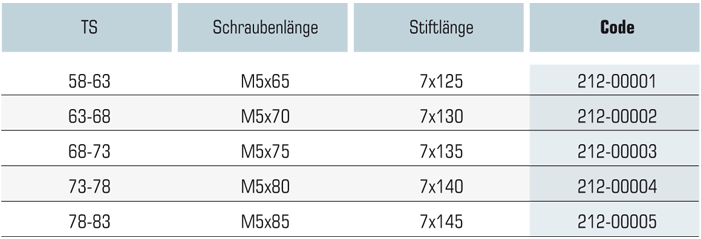

Tabelle 1.1 Rosetten-/Balkontürgarnituren

Set: 4 Schrauben M5 und 7mm Vierkantstift

tab1 1

Set Balkon

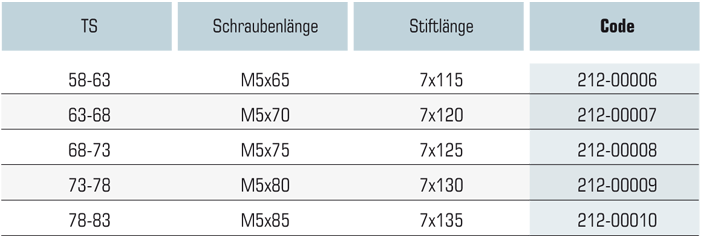

Tabelle 1.2 Rosetten-/Balkontürgarnituren mit niedrigem Griff für Rollladen R

Set: 4 Schrauben M5 und 7mm Vierkantstift

tab1 2



Set M5

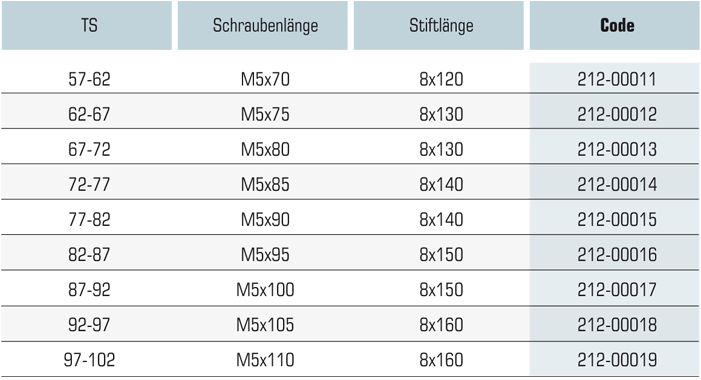

Tabelle 2.1 Sets für Schmalrahmengarnituren (26/28/30/32/35S)

Set: 3 Schrauben M5 und 8mm Vierkantstift

tab2 1

Set M5

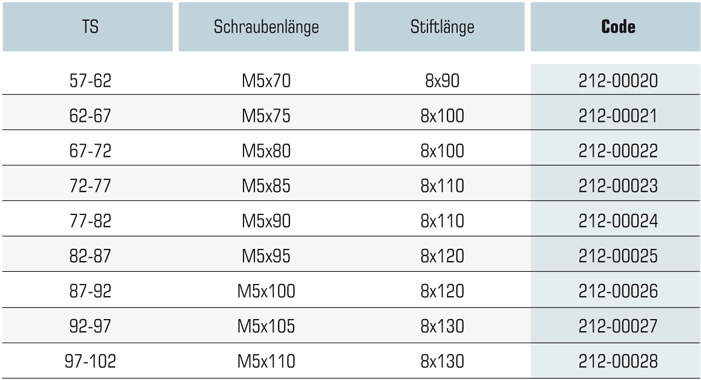

Tabelle 2.2 Sets für Schmalrahmengarnituren (26/28/30/32/35S) mit Knopf oder Bügel

Set: 3 Schrauben M5 und 8mm Vierkantstift

tab2 2



Set M6

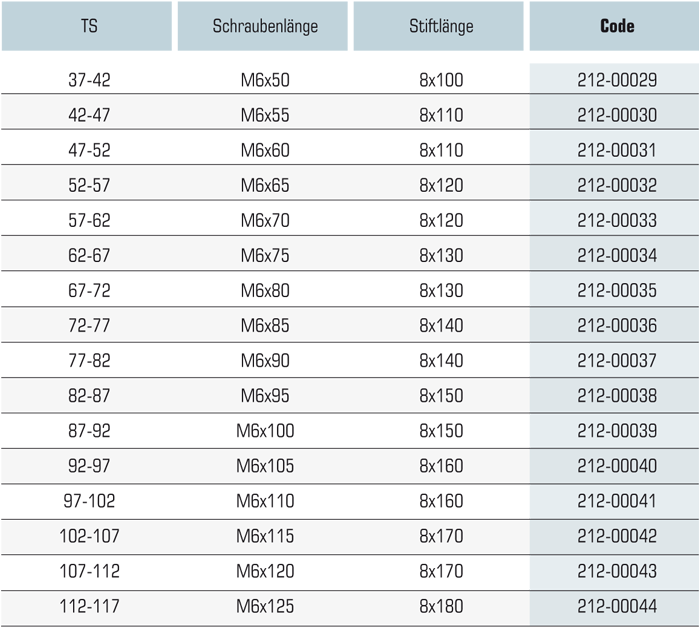

Tabelle 2.3 Sets für Schmalrahmengarnituren (35)

Set: 3 Schrauben M6 und 8mm Vierkantstift

tab2 3

Set M6

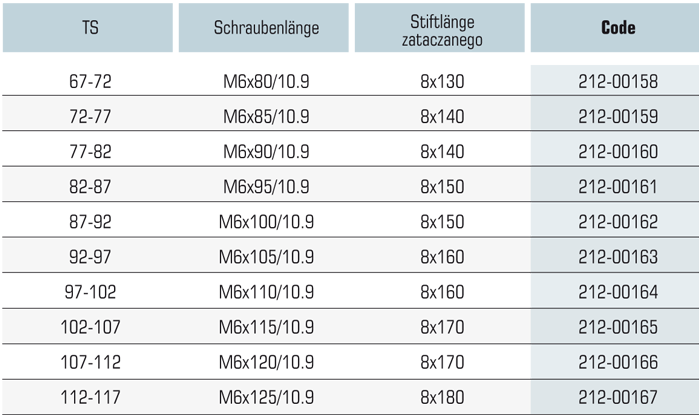

Tabelle 2.5 Sets für Schutzgarnituren (52)

Set: 3 Schrauben M6 - hochfesten Schrauben und 8mm Vierkantstift

tab2 5

Set M6
Tabelle 2.4 Sets für Schmalrahmengarnituren (35) mit Knopf oder Bügel

Set: 3 Schrauben M6 und 8mm Vierkantstift

tab2 4

Set M6

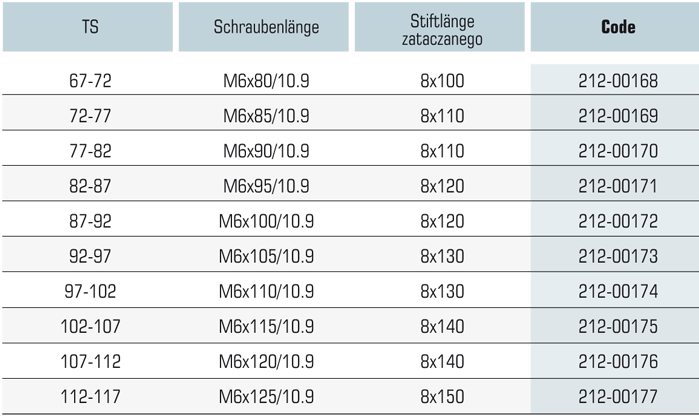

Tabelle 2.6 Sets für Schutzgarnituren (52) mit Knopf oder Bügel

Set: 3 Schrauben M6 - hochfesten Schrauben und 8mm Vierkantstift

tab2 6
